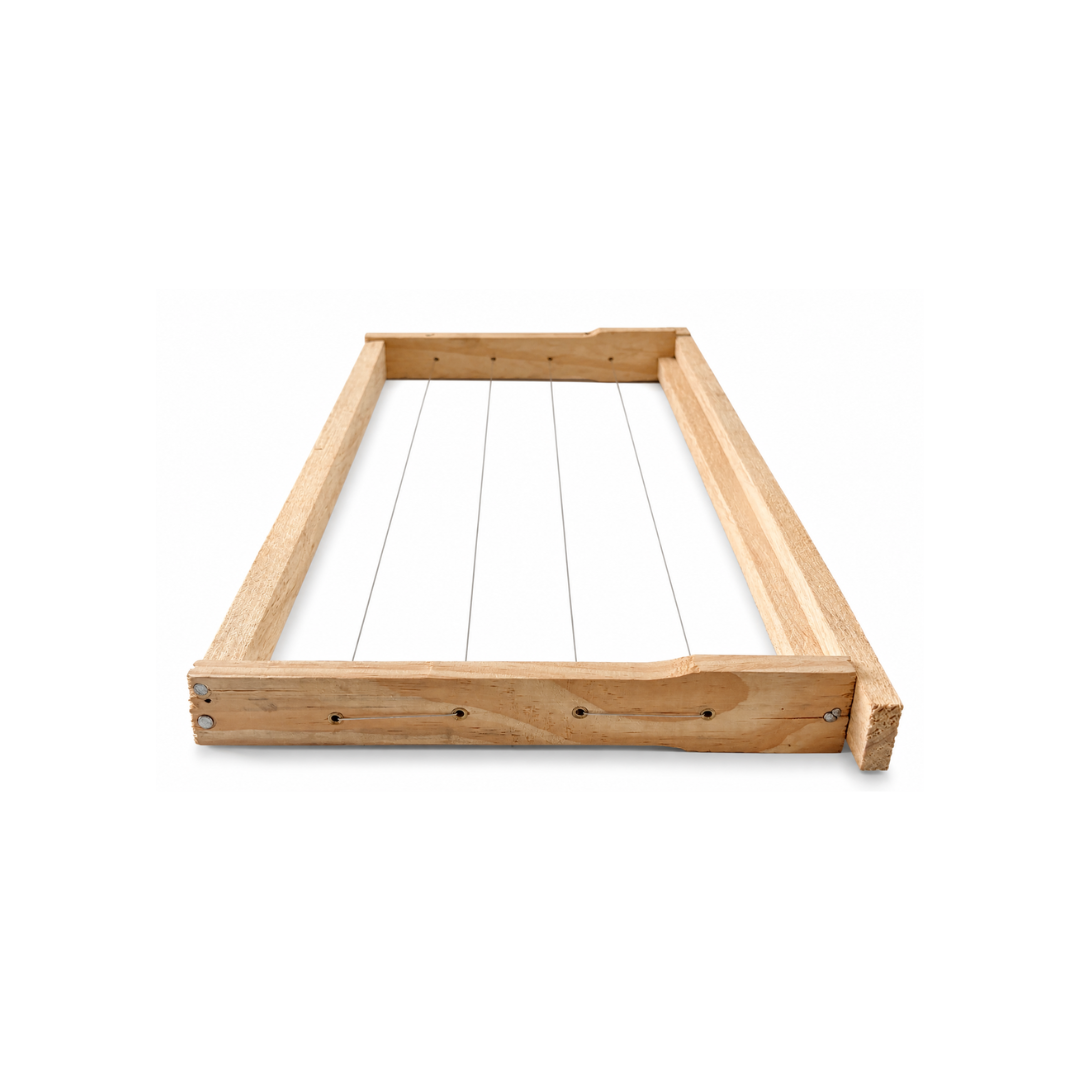

The Deep Langstroth Frame 9 1/8 – Wired is the standard deep frame used in the brood chamber of 10‑frame Langstroth hives. Made from high‑quality American pine and factory‑wired, it provides a strong structure for holding embossed wax foundation and building solid combs that carry brood, pollen, and honey without bending or breaking.

Its 9 1/8" height is designed to work inside a normal Langstroth deep hive body with 9 5/8" internal depth, maintaining proper bee space and allowing up to 10 deep frames per box. The internal wiring reinforces the foundation, making it easier to handle frames during inspections, transport, and extraction, and promoting straight, well‑capped combs.

Main uses:

• Deep frame for the brood chamber in normal 10‑frame Langstroth hive bodies.
• Support for brood, pollen, and honey combs in production hives.
• Replacement of old or damaged frames in the brood nest to improve hygiene and performance.

Features:

• Standard deep frame for 10‑frame Langstroth hives.
• Strong, stable American pine construction.
• Factory‑wired, ready to accept embossed wax foundation.
• Compatible with normal deep Langstroth hive bodies (9 5/8" internal depth).
• Suitable for intensive use in commercial and hobby apiaries.

Technical specifications:

• Top bar length: 19" (48.3 cm).
• Total frame height: 9 1/8" (23.2 cm).
• Approximate wood thickness (top bar and side bars): 1 1/16" (2.7 cm).
• Approximate wax foundation area: 17" x 8 1/4" (43.0 cm x 21.0 cm).
• These dimensions are designed to fit deep hive bodies with 9 5/8" internal depth and accommodate 10 deep frames per box.
